| TECHNICAL SPECIFICATIONS | ||
|---|---|---|

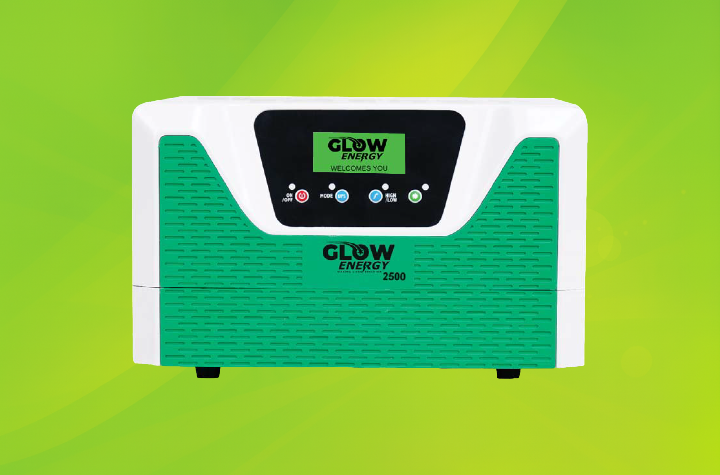

| BOOST UPS | ||
| Nominal Battery Voltage | 12 VDC | 24 VDC |
| AC Mains Mode | ||
| I/p Volt. Range (Normal Mode) | 100 to 280 VAC ± 5 VAC | |
| I/p Volt Range (UPS Mode) | 180 to 260 VAC ± 5 VAC | |
| Changeover Time Maximum | <= 20 ms | |
| Max. Charging Current (NC) | 25% less than HC | |
| Max. Charging Current (HC) | 15A ± 1A 18A ± 1A |
15A ± 1A 20A ± 1A |
| Boost Charging Voltage | 14.4V ± 0.1 VDC | 28.8V ± 0.2 VDC |
| Float Charging Voltage | 13.7V ± 0.2 VDC | 27.4V ± 0.4 VDC |
| Battery Backup Mode | ||
| Output Voltage at No Load | 220 VAC ± 7 VAC | |
| Output Frequency | 50.0 Hz ± 0.5 Hz | |
| Output Wave Form (At No Load) | 100% Pure Sine Wave | |
| Battery Low Alarm (VDC) | 10.8 ± 0.2 | 21.6 ± 0.2 |
| Battery Low Protection | 10.4 ± 0.2 VDC | 20.8 ± 0.2 |
| Current Boost Function Mode in Normal Mode only | ||
| Charging Current at 100 V AC | 8A ± 1A | |
| Protections | ||
| Short Circuit at Battery Mode | Should be functional | |
| Mains Fuse Trip | Should be functional | |
| Reset | Through ON / OFF Switch & Mains | |
