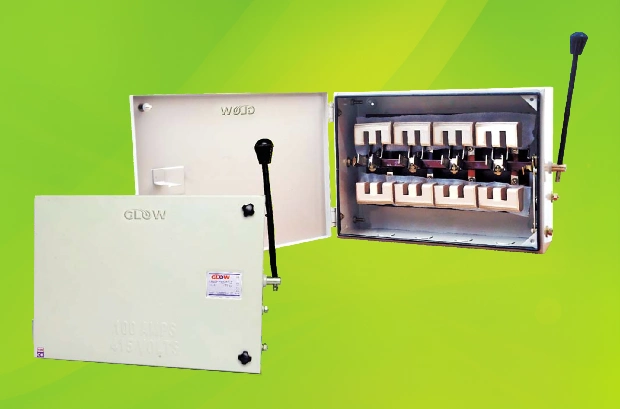

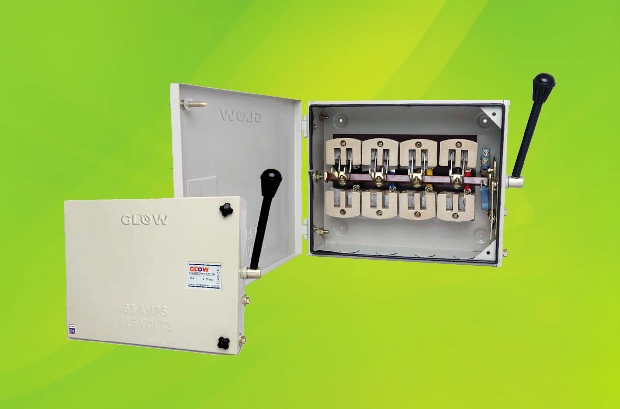

CHANGEOVER SWITCH

A comprehensive range of most affordable and good Changeover Switches with side handle operation find wide application in all general industries where indvidual system require safe and reliable transfer of power from main supply to standby supply and vise versa.

Construction and Features

Porcelain terminal blocks up to 100A rating are provided for cable termination having excellent mechanical, thermal and dielectric properties.
Above 100A ratings are also available with knife type blade contacts
High grade copper used for better conductivity and longer life
Quick make & break operation
High mechanical endurance
Side handles operation
Enclosed housing to avoid dust ingress
Double break contacts per pole
Terminals suitable for Al and copper conductors

Conforms to: IS / IES 60947-1&3
Configuration: DP & FP
Rated Voltage: 415V
Ratings:
16A to 1000A
16A to 100A ratings are available in Porcelain base
200A to 1000A ratings are available in Knife type contacts
Above ratings are also available on request
Insulation Voltage: 660V
