Hausstrom Group Company manufactures complete range of GLOW HRC Switch Fuse units offered to suit varied power distribution applications. The heavy duty Switches are fully tested with short circuit breaking capacity of 2kA / 4kA at 240V & 415V, suitable for utilization category AC-22 / 23A & B. Four fabrication frame sizes covered the rating from TPN 100 to 400A and other ratings in fabricated frames.

Construction and Features

  • Quick make and break operation
  • Complete range ISI marked
  • Enclosure made of CRCA Sheet Steel duly pretreated and powder coated
  • Hard bright tin plated contacts for high conductivity and longer life
  • Brass Parts suitable for Al & Cu conductors
  • All live parts are fully shrouded with DMC material
  • Door interlocking facility available
  • Also available iron clad switches rating from 100A to 400A
  • Conforms to: IS / IEC 60947-1&3
  • Configuration: TPN
  • Rating: 100A to 400A
  • Rating Voltage: 240 / 415V
  • Rated Insulation Voltage: 660V
  • Switch Fuse Range: 32A to 400A in TPN & FP Execution

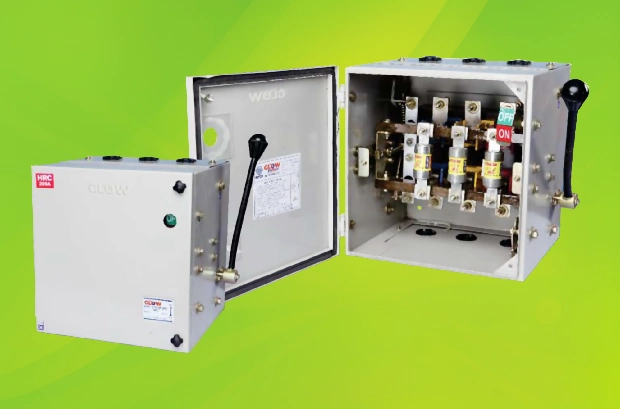

200a-hrc-switch-fuse-unit

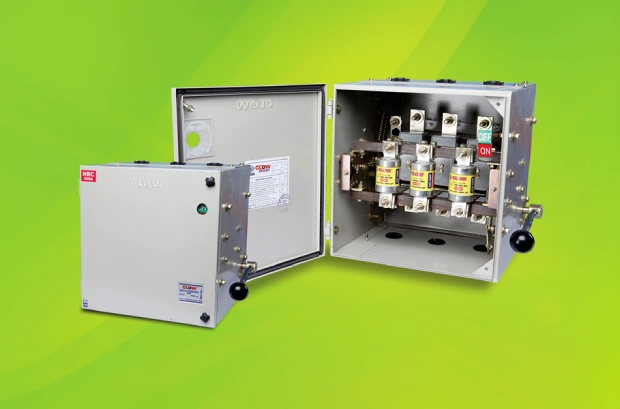

400a-hrc-switch-fuse-unit
